Faraday System Question (Updated)

Tue Sep 22, 2009 1:56 am

Had an identification question

For the Faraday, it's a horn/strobe with three openings on each corner, strobe in the middle. Not sure what model number.

And the next is another Faraday horn/strobe that looks like a big box with 5 vertical slits on the left next to the strobe on the right.

Help is appreciated.[/img]
Last edited by Busgeek71 on Sat Sep 26, 2009 7:38 pm, edited 3 times in total.

bwillcox
Registered User
Registered User
Posts: 255
Joined: Mon Jul 09, 2007 6:15 am
Location: Texas

Tue Sep 22, 2009 2:48 am

Most fire alarm notification appliances are just that, the signal cadence is driven by the notification appliance circuit on the fire alarm control panel and the appliances themselves don't have any settings on them at all, they just make noise.

Both your Faraday and Simplex appliances would fall into that category, and you'd need a panel to get them to do any kind of interrupted cadence.

That said, there are some multi tone appliances where the settings are changeable by jumpers or DIP switch like my MT24LSM.
"Highland Village to Chief 480..Are the sirens going off? We're not sure if we set them off right or not." :lol:

User avatar
Matt
Administrator
Administrator
Posts: 1028
Joined: Wed Nov 28, 2007 11:15 pm
Real Name: Matt
Contact: Website

Tue Sep 22, 2009 2:55 am

I know your talking about this one http://www.youtube.com/watch?v=Wci_lBCtdqo and I think its called a FOS 6227
videogamer
Matt Ullman

User avatar
3t22
Registered User
Registered User
Posts: 802
Joined: Mon May 15, 2006 4:48 am
Real Name: Dan Drega
YouTube Username: federal3t22
Location: Vernon CT
Contact: YouTube

Tue Sep 22, 2009 5:00 am

Simplex used Faraday bells, chimes, and horns in their fire alarm line from the late 70's up until the TrueAlert line came out in 1999. Good examples of this are their 2901-9838 and 2901-9833 horns, and the horn in their 4903-9219 horn/strobe. They also used Federal Vibratone 450s for their 2901-9806 horn, and Vibratone 350s for their 4040 horn.

As Brent mentioned, march time is controled on a fire alarm control panel, so any alarm, even a Wheelock 7002T who's horn skips when the strobe flashes, can do it (although it sounds very weird). Some electronic alarms, such as the Wheelock MT, can do march time on their own, and others, like a Smart Sync compatable Simplex TrueAlert, have to be hooked into a module to do it. Speakers can do what ever is played over them, most companies opt for a slow whoop and voice instructions.

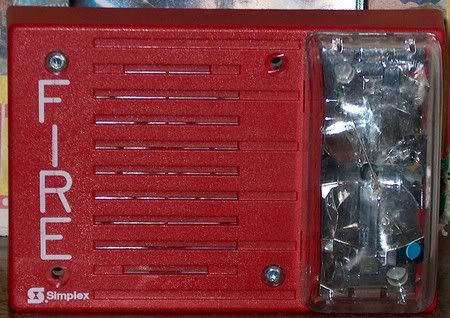

As for the Simplex alarm you're talking about did it look like this?


if so it's a 4903 series, but the insides could be either an electric horn like a 9219 or 9403 (pictured), electronic like a 9422, or a speaker like a 9356. Good way to tell them apart is, if you look through the grill and see a shiny silver plate it's electric, if you see a small round black device it's electronic, if it lookes like the insides of a speaker (a round shiny middle on a flat black circle) is a speaker.

hope this helps somewhat
Proud owner of a 2T, 5, M-5, 1000 Head, 7T, 3T22, and a single toned 2
