Hello, not sure if I’m in the right place but I’m just wondering where I can find a wiring diagram on a 1 Phase ACA Banshee? Or information on the motor., like start and run capacitors, wire numbers etc…
Any information will help!
Thanks.
-
cooldomino
- Posts: 25
- Joined: Thu Jun 14, 2018 1:33 am
- YouTube Username: cooldomino
- Contact: YouTube
Any information on a ACA 1 ph Banshee?
Owner of a Whelen Vortex R4, 2 SD-10s, Thunderbolt 1000AT, and Model 2-240
Sirens of Arizona.
Sirens of Arizona.
-
NahIDee
- Registered User
- Posts: 245
- Joined: Sun Jul 23, 2017 2:00 am
- Real Name: Connor B
- YouTube Username: condb19
- Discord: somebody2950
- Location: St. Paul, Nebraska
- Contact: YouTube
Re: Any information on a ACA 1 ph Banshee?

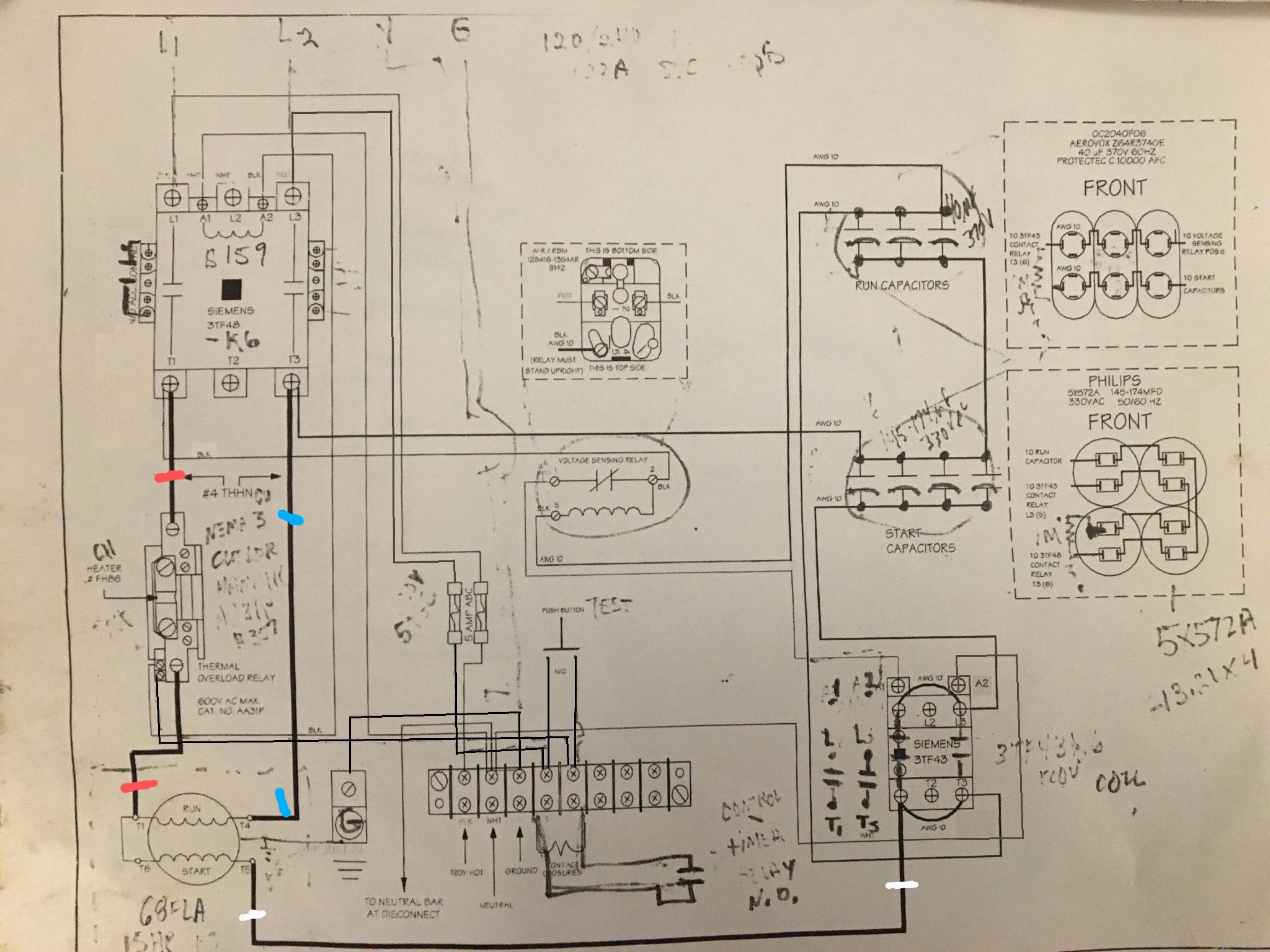

This is for a P-15 with a Baldor motor. Motor manufacturers and sizes have different capacitor ratings and quantity.cooldomino wrote: ↑Wed Jul 03, 2024 11:55 pmHello, not sure if I’m in the right place but I’m just wondering where I can find a wiring diagram on a 1 Phase ACA Banshee? Or information on the motor., like start and run capacitors, wire numbers etc…
Any information will help!
Thanks.
- Attachments
-
- 285662852_1263382250865746_7622649663563467333_n~2.jpg (437.02 KiB) Viewed 2066 times
Greetings from Saint Paul, Nebraska!
Proud owner of an ACA Alertronic AL-4000, Alertronic AL-6000R, Cyclone 120, Gen-1 Allertor 125, Gen-3 Allertor 125, nine Penetrators, four Banshees, and a B&N BN44E!
Proud owner of an ACA Alertronic AL-4000, Alertronic AL-6000R, Cyclone 120, Gen-1 Allertor 125, Gen-3 Allertor 125, nine Penetrators, four Banshees, and a B&N BN44E!
-
cooldomino
- Posts: 25
- Joined: Thu Jun 14, 2018 1:33 am
- YouTube Username: cooldomino
- Contact: YouTube
Re: Any information on a ACA 1 ph Banshee?
Thank you very much! Do you happen to know the potential relay specs on the banshee? Can I see a clearer photo of the relay’s part number? Thanks!
Owner of a Whelen Vortex R4, 2 SD-10s, Thunderbolt 1000AT, and Model 2-240
Sirens of Arizona.
Sirens of Arizona.
-
NahIDee
- Registered User
- Posts: 245
- Joined: Sun Jul 23, 2017 2:00 am
- Real Name: Connor B
- YouTube Username: condb19
- Discord: somebody2950
- Location: St. Paul, Nebraska
- Contact: YouTube
Re: Any information on a ACA 1 ph Banshee?
Steveco 90-64cooldomino wrote: ↑Thu Jul 11, 2024 11:48 pmThank you very much! Do you happen to know the potential relay specs on the banshee? Can I see a clearer photo of the relay’s part number? Thanks!
Greetings from Saint Paul, Nebraska!
Proud owner of an ACA Alertronic AL-4000, Alertronic AL-6000R, Cyclone 120, Gen-1 Allertor 125, Gen-3 Allertor 125, nine Penetrators, four Banshees, and a B&N BN44E!
Proud owner of an ACA Alertronic AL-4000, Alertronic AL-6000R, Cyclone 120, Gen-1 Allertor 125, Gen-3 Allertor 125, nine Penetrators, four Banshees, and a B&N BN44E!
