Thunderbowl 1000 chopper bearing help.

[markslimm]

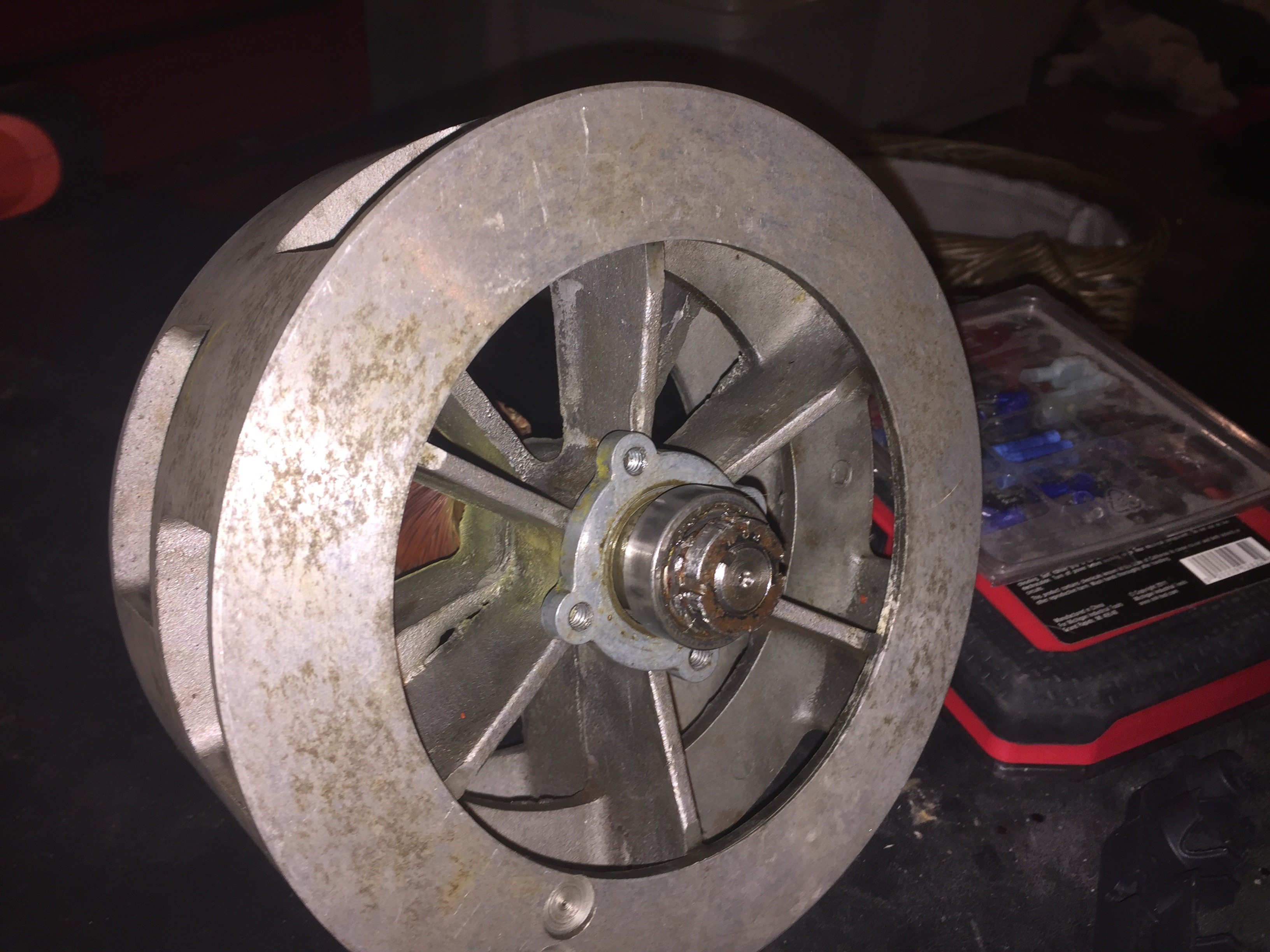

I'm currently replacing both bearings on my thunderbolt 1000 T. I removed the bottom bearing with no problem. But I can't seem to move the retaining nut that holds the top bearing on. It will not budge, I've sprayed it with WD-40. All I've manage to do is scrape it up. It's not backwards threaded visit? Does anyone have any suggestions? Your help is greatly appreciated.

[coastalsyrolover]

Murrfarms did a video on that... He might be able to help... (OH IAAAAAAN!)

[connerdstines]

https://www.youtube.com/watch?v=K7abRQAaosk

[TboltTX1]

Those spanner nuts can be difficult to remove for the first time. They aren't reverse-threaded or anything (the lock washer keeps it from moving regardless of which direction the motor is spinning). The proper way to remove one is to use a spanner wrench that is the correct size and has the correct teeth to fit the slots. However, it may be difficult to find one that fits this nut properly.

I recently swapped rotors and bearings in my chopper motor and the way I removed the nut was by putting it in the chuck on my friend's lathe with an insert that fit the nut snugly to hold it in place without squeezing it unevenly and bending it out of shape. I then used the rotor as leverage by grabbing it and turning it by hand to break the nut loose (that way the nut didn't get marred up by vice grips by applying the force directly to the nut).

[markslimm]

I finally got it off. I ended up lightly hitting it with a hammer, it twisted right off after that. Thanks for you're replies!
