I'm currently 3D modeling a mini Allertor for fun and was wondering if anybody had the dimensions for the parts such as the main torus-shaped section, horn (in front of that section), intake, chopper, and hood. Any help is appreciated!
Sorry if this is the wrong place to post this by the way-
-
Camtrack626
- New User
- Posts: 4
- Joined: Tue Oct 03, 2023 6:42 pm
- Real Name: Cameron
- YouTube Username: NortheastRailfanProductions
-
Camtrack626
- New User
- Posts: 4
- Joined: Tue Oct 03, 2023 6:42 pm
- Real Name: Cameron
- YouTube Username: NortheastRailfanProductions
Re: Allertor Dimensions

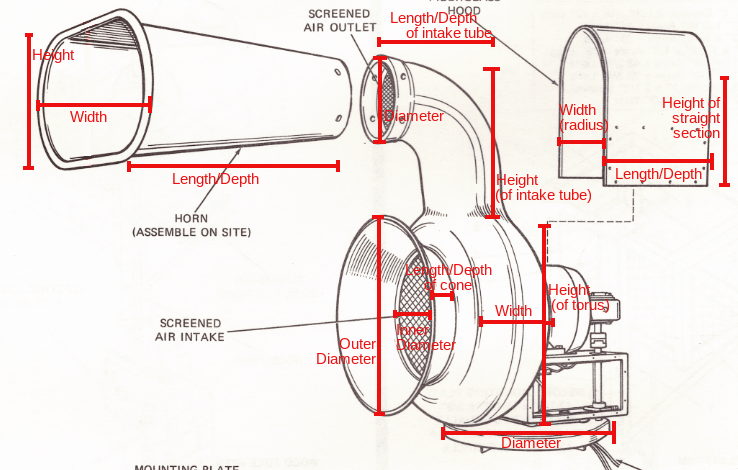

Here's an example of the dimensions I'm looking for.
You don't have to provide all of them, but I would be EXTREMELY thankful if someone could provide me with a few of these.
You don't have to provide all of them, but I would be EXTREMELY thankful if someone could provide me with a few of these.
- Attachments
-
- 2025_05_06_0iu_Kleki.png (551.94 KiB) Viewed 29416 times
Last edited by Camtrack626 on Thu May 08, 2025 2:14 pm, edited 1 time in total.
